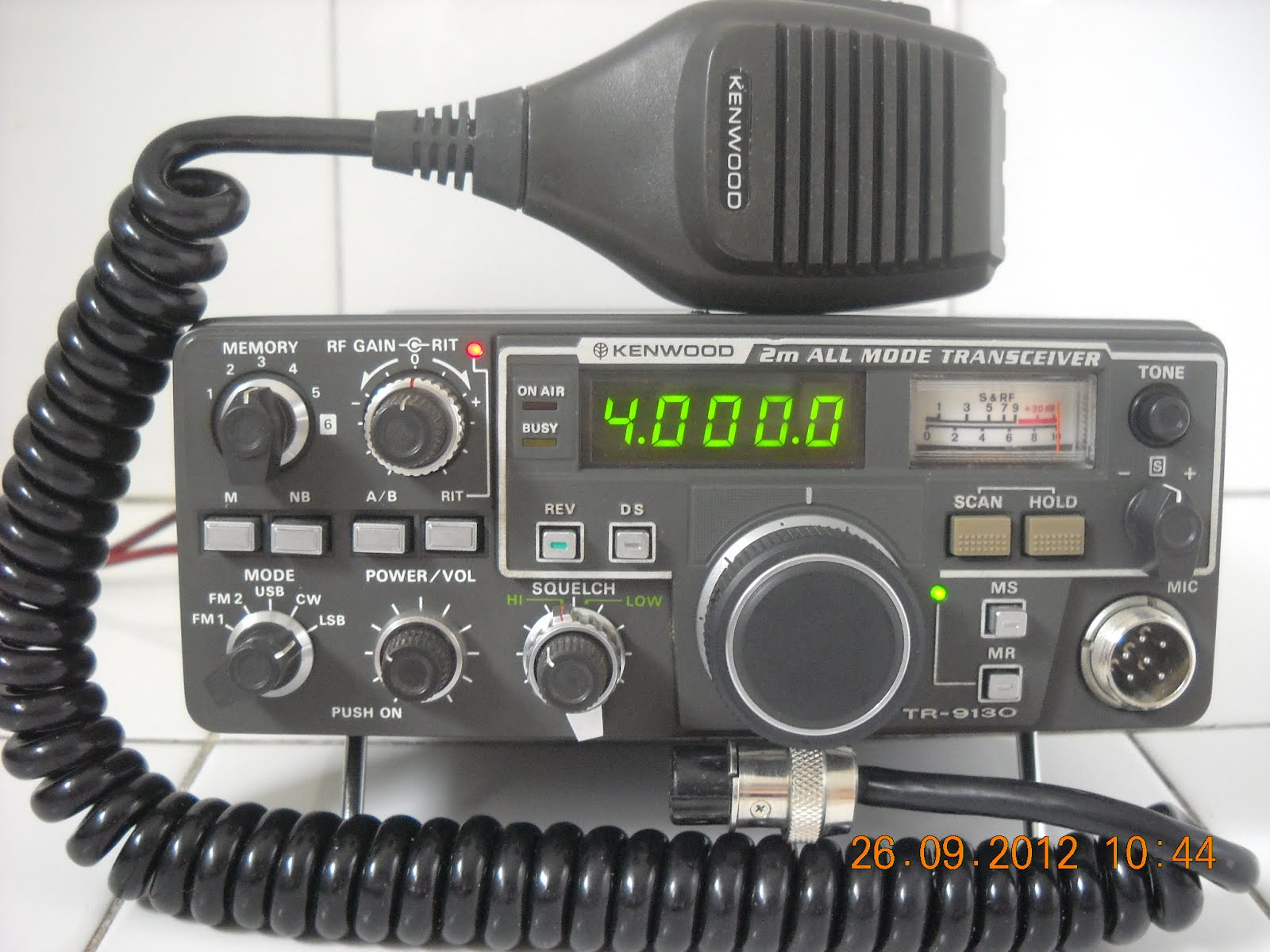

The T R-9130 is a powerful, yet compact, 25 watt FM/USB/LSB/CW transceiver providing increased versatility of operation on the 2 meter band. In addition to the high 25 watt RF output power, the T R-9130 offers improved operating features usable in. Kenwood TR-9130 Instruction Manual Tr-1930 created Please check your e-mail in order to activate your account. Fill in your e-mail address below and we will send you a reset link. You agree not to post any material which is knowingly false, obscene, hateful, threatening, harassing or invasive of a person’s privacy. Kenwood TR-9130 Manuals Manuals and User Guides for Kenwood TR-9130. We have 3Kenwood TR-9130 manuals available for free PDF download: Service Manual, Instruction Manual Kenwood TR-9130 Service Manual (39 pages).

Kenwood Tr-9130 User Manual

Kenwood Tr 9130 Manual

1. 2m all band Transceiver for FM, SSB (USB, LSB), and CW operation. 2. Rotary click, 100Hz step (1kHz, 5kHz, 12.5kHz and 25kHz steps depending on the mode and the position of the DS switch) digital 2-VFO system specifically designed for mobile operation. 3. Five-digit display indicates frequency of all operating modes. 4. TX OFFSET switch shifts frequencies ± 600kHz for « standard Repeater operation. 5. Six memory channels. Two different frequencies (transmit and receive) are stored in CH6, permitting 'odd-split' Repeater operation. 6. A newly designed SSB squelch circuitry is employed to provide comfortable operation as well as in FM mode. 7. Optimum frequency step to suit each mode can be selected by the DS switch. 8. Incorporates auto scan circuit (BUSY signal stops in all FM mode). 9. Automatic selection of RIT, NB, RF GAIN and AGC. ► 10. The Transceiver has a memory scan circuit which scans only the channels stored in the memory. 11. The CW break-in circuitry and the side-tone circuitry available in all modes are incorporated. 12. Hand microphone with frequency UP-DOWN switch. 13. In the SSB/CW mode, the transmit frequency is variable and can be used for Oscar communication. 14. RF POWER HI-LOW switch. 1 5. Unique escutcheon design allows easy installation for mobile operation. 16. Full variety of accessory terminals (KEY, AUX, BACK UP, STBY, EXT SP). 17. A memory back-up Ni-Cd battery can be installed.
